Hyundai 5.8kW/7.5kVA Long Run Standby Diesel Generator Single Phase

Product code: 39452106

In Stock Check Stock By Store
x
Elgin Depot1
£1380.00 (£1150.00 +VAT)
Delivery Truck Logo

£6.95

Or Free Collection From Store

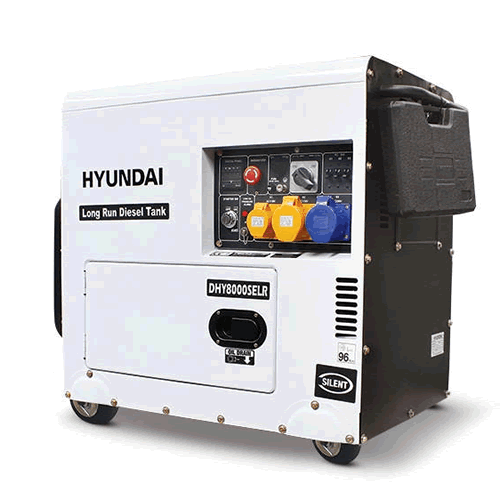

The DHY8000SELR standby generator is the long running version of the DHY8000SE, with a large 25L diesel tank, boosting the maximum running time of this standby diesel generator to 30 hours of backup power. Powered by a 4-stroke, air-cooled D452 Hyundai diesel engine, the DHY8000SELR backup generator has a maximum output of 5.8kW. It features the same AVR alternator which produces clean energy. Although it won’t be able to run everything, it allows more essential home items to continue running in the event of a power cut when the National Grid fails. The DHY8000SELR is ATS (Automatic Transfer Switch) compatible. ATS is an optional extra that ican be connected to an ATS system for maximum convenience. When the ATS module detects a loss of power from the mains supply it simply powers your generator up automatically, then shuts it off when it detects power returning from the mains.

    Quantity:

  • Dependable long running standby diesel generator for backup power
  • Equipped with a 25L diesel tank for an increased running time of up to 30 hours.
  • Powered by a 4-stroke, air-cooled D452 Hyundai diesel engine.
  • Produces a maximum of 5.8kW of standyby power.
  • Uses ATS capabilities to automatically start and shutdown during a power cut. ATS sold separately.
  • Housed in a silenced case with a sound rating of just 70dB @ 7 metres.
  • ModelDHY8000SELR
    Rated/Prime kVA*6.3
    Rated/Prime kW5
    Max/Standby kVA*7.25
    Max/Standby kW5.8
    PhaseSingle
    Voltage115 / 230
    Connection Method(s)Sockets - 1 x 115V/16A 1 x 115V/32A 1 x 230V/32A
    Rated Speed (RPM)3000
    Frequency (Hz)50
    Max/Continuous Current (Amps)115v 50 / 43.5 - 230v 25 / 21
    Power Factor (Cosφ)1
    Fuel/Power SourceDiesel
    Fuel Tank (Litres)25
    Runtime (Hours) @ 100% Load14.62
    Noise Level @ 1m 75% load (dB)96
    Noise Level @ 7m 75% load (dB)70
    Hyundai Diesel Engine ModelD450E
    Engine Power (hp) @ 3000rpm9
    Engine Displacement (CC)456
    No. of Cylinders1
    Recommended Oil Type15w40 / 10w40
    Oil Capacity (Litres)1.65
    Oil Filter Part No.D450-B9+D450-B8
    AspirationNatural
    Fuel Regulation/Governor SystemMechanical
    Fuel Consumption (100% Load) [Litres]1.71
    Fuel Filter Part No.D450-R05
    CoolingForced Air-Cooled
    Alternator ModelD450/500-S01-4
    Breakers1P 30A 1P 21A 1P 13A
    Alternator TypeBrushed
    Voltage RegulationAVR
    Air Filter Part No.D450-I4
    Net Weight (kg)158
    Gross Weight (kg)167
    Wheel Kit?Yes
    Product Dimensions L x W x H (mm)960 x 560 x 890
    Packaged Dimensions L x W x H (mm)960 x 560 x 910
    Battery (Ah)12v 36a/h
    ATS / MTS CompatibleYes
    Control PanelLED3 DISPLAY
    Warranty1 Year / 1000 Hours* (Terms apply)
    Model EAN610370632338
    Product TypeDiesel Generator
