ESAB Rustler 350 PRO Synergic Pulse Welding Package
Product code:34013994
£3999.60 (£3333.00 +VAT)

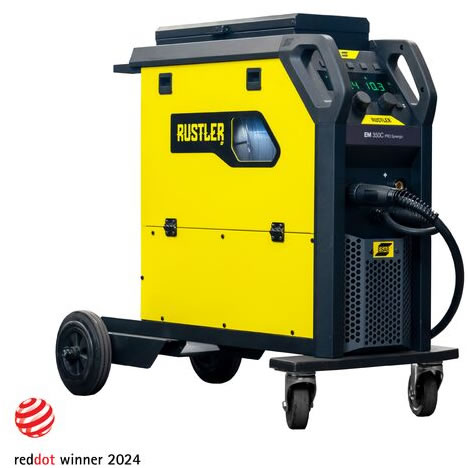

Rustler EM 350C PRO Synergic Pulse, Power Source + Toolbox + Torch
Rustler MIG PRO compact welding inverters are your solution of choice for the most common welding challenges. Equipped with the latest inverter technology, they combine low energy consumption with optimized welding performance.
- Produce more with a high output current and duty cycle
- Intuitive panel with direct access to job settings reduces adjustment times

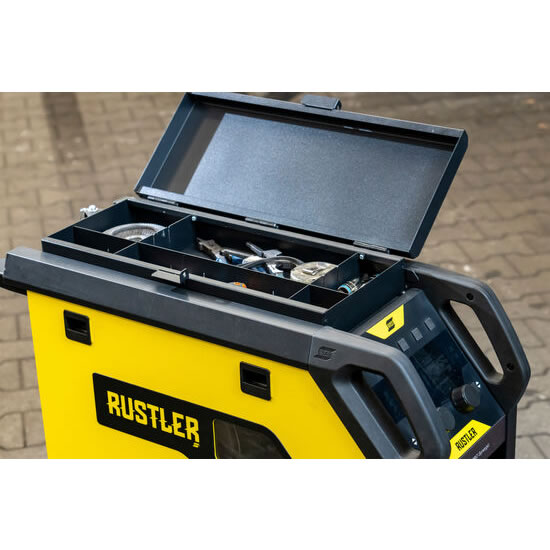

- Durable housing with flexible accessories storage makes machine an easy to move workstation
- Inspection window and light in the compartment for better visibility and less downtime
- Superb arc characteristics, optimized for most common base materials results in less post-weld rework

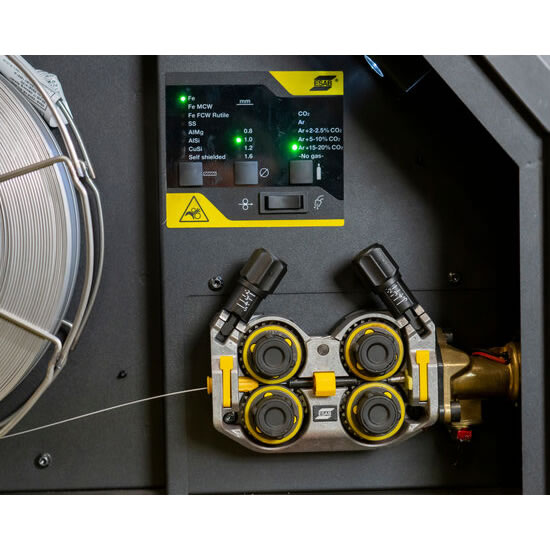

- Premium 4WD (Ø 38 mm) feeding mechanism for stable performance and long parts life
- Built-in MMA welding mode gives flexibility to weld different types of base materials
- MIG Pulse mode available for specific models
- Industrial and General Fabrication
- Agricultural Equipment
- Repair and Maintenance
- Steel Erectors
- SMAW/MMA (Stick)
- GMAW (MIG/MAG)
| Input Voltage | 400 V 15 %, 3 Φ, 50/60 Hz |
| Max Output | 350 A320 A |
| GMAW (MIG/MAG ) Welding Output | 350 A31.5 V @ 40 % Duty Cycle |
| SMAW/MMA (Stick) Welding Output | 320 A32.8 V @ 40 % Duty Cycle |
| Setting Range | |
| GMAW (MIG/MAG) | 30-350 A (15.5-31.5 V) |
| SMAW/MMA (Stick) | 20-320 A (20.8-32.8 V) |
| Open Circuit Voltage | 66.6 VDC |
| 71.0 VDC | |
| Power Factor at Maximum Current | 0.90 |
| Efficiency at Maximum Current | 89 % |
| Supply Plug | CEE16 |
| Operating Temp | -10 - +40 °C |
| MCableX | 4x2,5 mm2, 4 m |
| Metal | Stainless Steel | Mild Steel | Aluminum | Flux Cored |
| Wire Diameter (met) | 0.6-1.2 mm | 0.8-1.2 mm |
| Wire Feed Speed | 1.5-22 m/min |
| rated kVA | 14.0 kVA |
| Recommended Generator | 17 kW |
| Enclosure Class | IP23 |
| Certification | CE/UKCA |
| Dimensions, L x W x H | 977 x 487 x 800 mm |
| Weight | 61 kg |
