Coburn Straightaway 430 Top Track 1000Kg
Product code:12154475
£228.89 (£190.74 +VAT)
From
Shipping calculated at checkout
or free collect from Store
Delivery Rates
Mainland£6.95
Non-Mainland£18.95
Shetland£27.75
Collection£0.00
Straightaway 430 is a heavy weight industrial sliding door system for doors up to 1000Kg.
Designed to be used with either timber or metal doors on garages, factories, warehouses etc.
It can be used with single or multiple track runs and bottom channel and in some cases can be replaced with stay rollers to leave a clear threshold.
The Straightaway 430 is a tried and tested system and once installed needs minimum maintenance.
Timber door thickness 57mm to 70mm. Metal door thickness 50mm.
Datasheets for :
430 datasheet
430 Track Dimensions Drawing
Straightaway datasheet
can be downloaded via the links below.

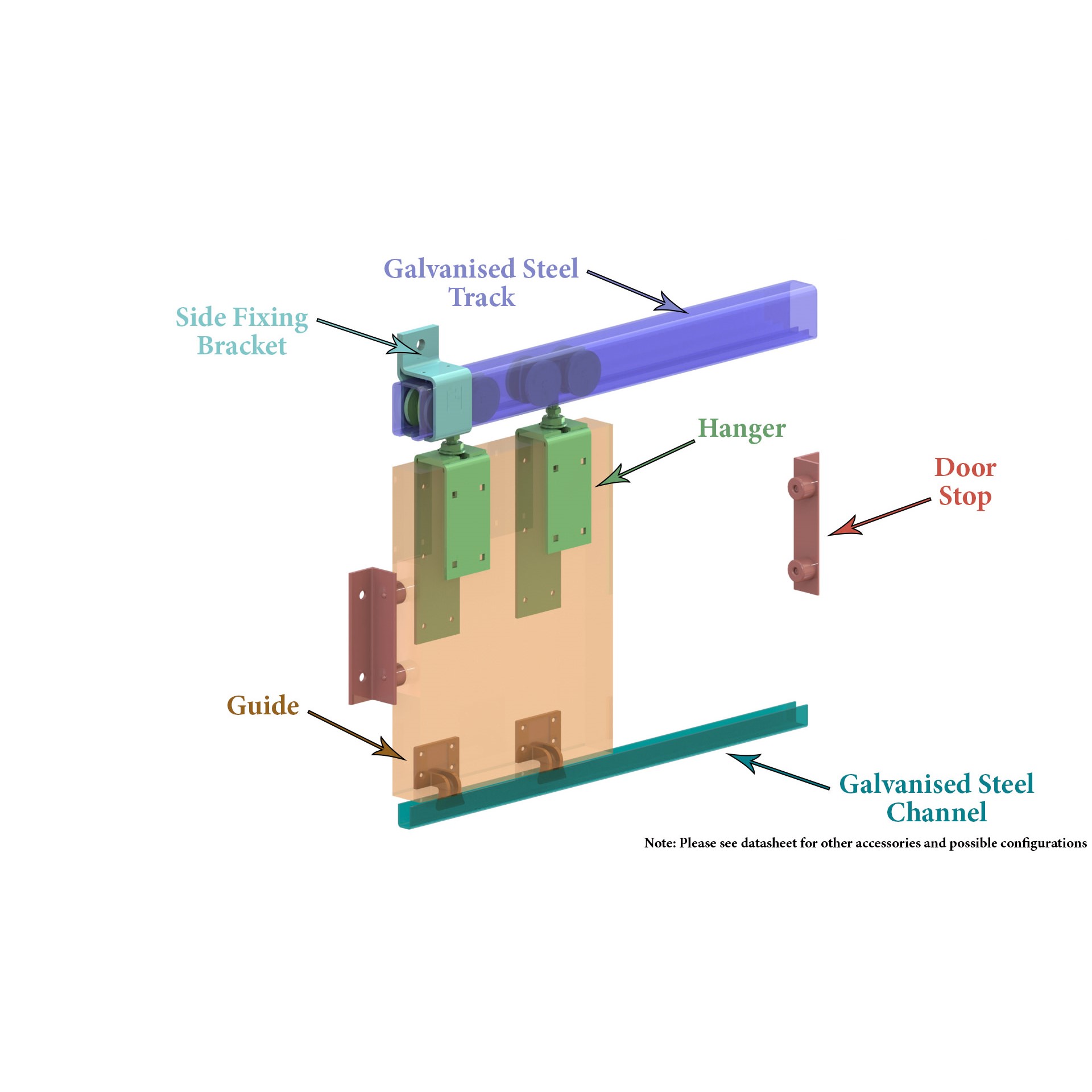

- OVERVIEW: - Top hung sliding system for external timber or metal doors up to 1000kg
- Ideal for industrial applications
- Steel top track galvanised to BS EN 10346
- Hangers with precision ball bearings and high performance steel wheels provide smooth operation
- Vertical and lateral adjustment available on hangers ensures a perfect fit
- Soffit, wall and double track wall fixing available
- Range of bottom guiding available including the use of stay rollers to achieve a clear threshold
- Suitable for single or multiple track layouts
- Any number of doors can be used on single or multiple lines of track to cover the width of the opening
