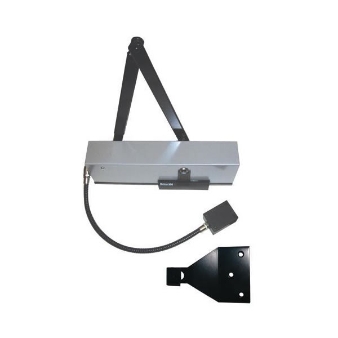

Briton 996/3 Hold Open/Swing Free Door Closer

Product code:12054095
In Stock Check Stock By Store
x
Perth Depot0
Turriff Depot0
Elgin Depot0
Dundee Depot0
Fort William Depot0
Kirkwall Depot0
Inverness Depot1
£528.26 (£440.22 +VAT)
Delivery £6.95 or free collect from Store

Briton 996 is typically used on fire rated doors where the hold-open or swing-free feature is required either in high traffic areas for convenience or in situations where it would be difficult to satisfy the maximum opening force requirements of Part M of The Building Regulations.

Linked to the building’s alarm system, electromagnetic door controls eliminate the illegal practice of wedging doors open.
This dangerous practice prevents a fire door functioning as it should in stopping the spread of flames and smoke in the event of a fire.

A Datasheet can be downloaded from the link below.

Briton 996 datasheet
    Quantity
    Remove Add
    • Maximum door width 930mm & weight 60kg application 01
    • Maximum door width 830mm & weight 45kg application 66
    • On site choice of ‘hold open’ or “Free swing” functions
    • SE - silver finish & black arm
    • Ideal for use in areas used by the elderly or infirm
    • Non handed
    • Pressure die cast aluminium body giving rugged durability.
    • Steel rack and pinion mechanism is heat treated for strength and durability.
    • High quality silicon chrome alloy steel used for the coil spring.
    • Armset and brackets for regular or transom mounting (for parallel mounting please specify when ordering)
    • Fabricated steel cover is available in a range of finishes
    • ‘Catch plate’ can be set to operate in hold-open or swing-free mode at the point of installation.
    • Electromagnet is controlled by the building fire alarm/detector
      and activates the ‘catch plate’ to ensure the door closes automatically in the event of a fire or power failure.
    • Optional rear entry cable allows units to be installed with concealed cable via a concealed loop to protect the closer against vandalism.
    • Supplied with flexible armoured power loop (330mm long as standard) to run power safely from the door frame to the closer
    • CE marked to EN1154 - AE0007 (Briton 9963)
    • - AE0008 (Briton 9964)
    • - AE0012 (Briton 9965)
    • CE marked to EN1155 for electromagnetic hold-open variants
    • Fire tested to EN1634 on timber doors to achieve a 2 hour fire rating.
    • Certifire Approved CF109
    • EPD certified
