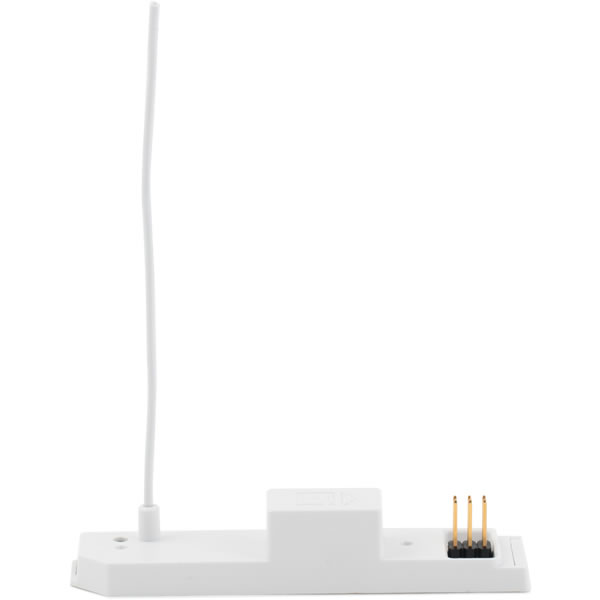

Aico Ei3000MRF SmartLINK Module

Product code:90011288
In Stock
x
Perth Depot0
Turriff Depot0
Elgin Depot0
Dundee Depot0
Kirkwall Depot0
Fort William Depot5
Inverness Depot10
£58.20 (£48.50 +VAT)
Delivery £6.95 or free collect from Store

With the introduction of the 3000 Series Aico have also advanced their award-winning Radio Frequency (RF) Wireless Interconnection and Data Monitoring technology.

The new SmartLINK technology still provides the same proven wireless interconnection technology as RadioLINK and RadioLINK+, using Radio Frequency signals and is completely compatible with both existing systems.

No need for tricky cable runs, alarms interconnect using Radio Frequency signals
When one alarm is triggered, all others sound for audibility throughout the property
Expand existing systems easily by adding in SmartLINK technology
Achieve remote whole-system data monitoring and extraction when access is not possible

To add SmartLINK technology to your system, simply plug SmartLINK modules into any 3000 Series alarm head.

Aico RadioLink detectors
    Quantity
    Remove Add
  • Powered from alarm head
  • Add this to an Ei3000 series alarm to allow for SmartLINK interconnection and data extraction
  • Compatible with other Aico wireless interconnection products
  • Interconnect up to 12 alarms and devices wirelessly
  • Real-time configurable notifications
  • Full visibility of your connected SmartLINK systems
  • Forecast alarm replacements and maintenance
  • Remote Alarm Learn entry
  • Transmits, receives and repeats RF specific data
  • RF mesh architecture
  • Unique House Coding feature
  • RF Data Download
  • Supply Voltage: Powered from Alarm
  • RF Frequency: 868MHz band (1% duty cycle)
  • RF Power: +10dBm
  • RF Protocol: Proprietary RF Protocol using multi-path, multi-repeater mesh architecture
  • RF Range: >100 metres in free air, 30 metres in standard property
  • System Size: Up to 12 RF devices
  • Indicator LED’s: 3 colour LED: Blue, Green and Red
  • Data Monitoring: Via Ei1000G Gateway
  • Data Download: Via EiUSB1
  • Operating Temperature: -10°C to 40°C
  • Humidity Range: 15% to 95% relative humidity
  • Plastic Material: UL 94 V0 flame retardant
  • Dimensions – Product: 80mm x 18mm x 16mm
  • Dimensions – Boxed: 120mm x 110mm x 35mm
  • Weight: 10g (product only), 62g (boxed)
  • Guarantee: 5 years
