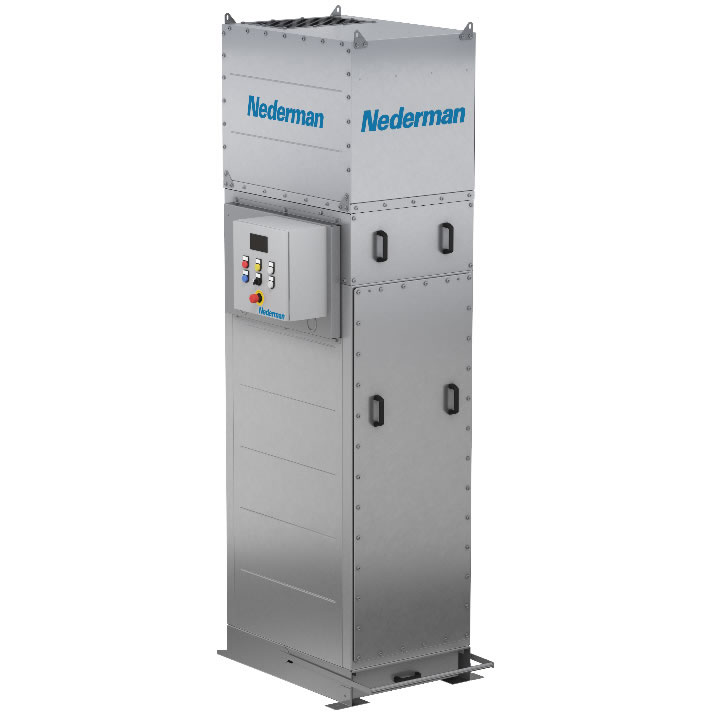

Compact plug and play welding fume extractor
MCP-GO SmartFilter is a compact cartridge dust collector, designed to reliably provide clean air in a variety of manufacturing environments where thermally generated fumes and dusts are generated - from manual, robot and cobot welding systems to plasma and laser cutting processes. Building off Nederman’s industry leading MCP SmartFilter technology, the MCP-GO offers a new, more convenient solution to protect people, production, and planet. It is a flexible and cost-effective alternative to complex centralized ducting installations.

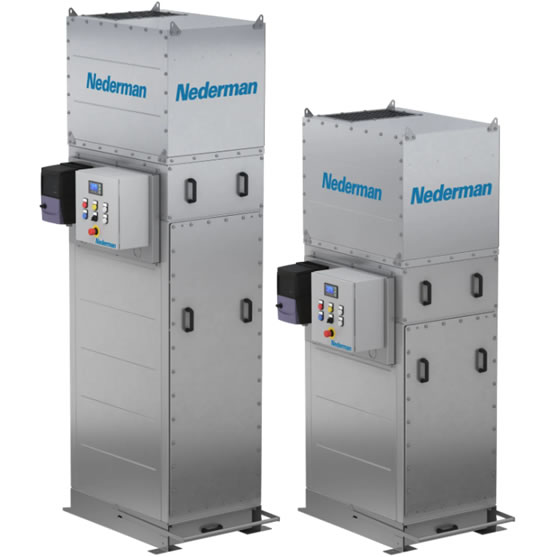

Available in two sizes, it can serve applications with airflow demand up to 4.500 m3/h (2,650 cfm). Its versatility allows the use of up to 5 extraction arms, multiple automated welding stations, or a plasma/laser cutting table.
- Compact design with small footprint (less than 1m2 (10ft2)) saves valuable space on the factory floor and allows great flexibility as to choice of placement.
- Robust industrial design. With cabinet made of 2 mm galvanized steel and heavy-duty industrial fan, the unit will deliver clean air for many years to come.
- Six high-capacity, patented cartridge filters with fire-retardant, Nanofiber media increase efficiency, reduce energy consumption and extend filter life. The cartridges are rated according to ISO 16890 ePM1 80% and ASHRAE 52.2 MERV 14.
- Simple and convenient installation and maintenance. Delivered as one or two pre-mounted and pre-wired components, and once installed, has single-side service access to all vital unit components.

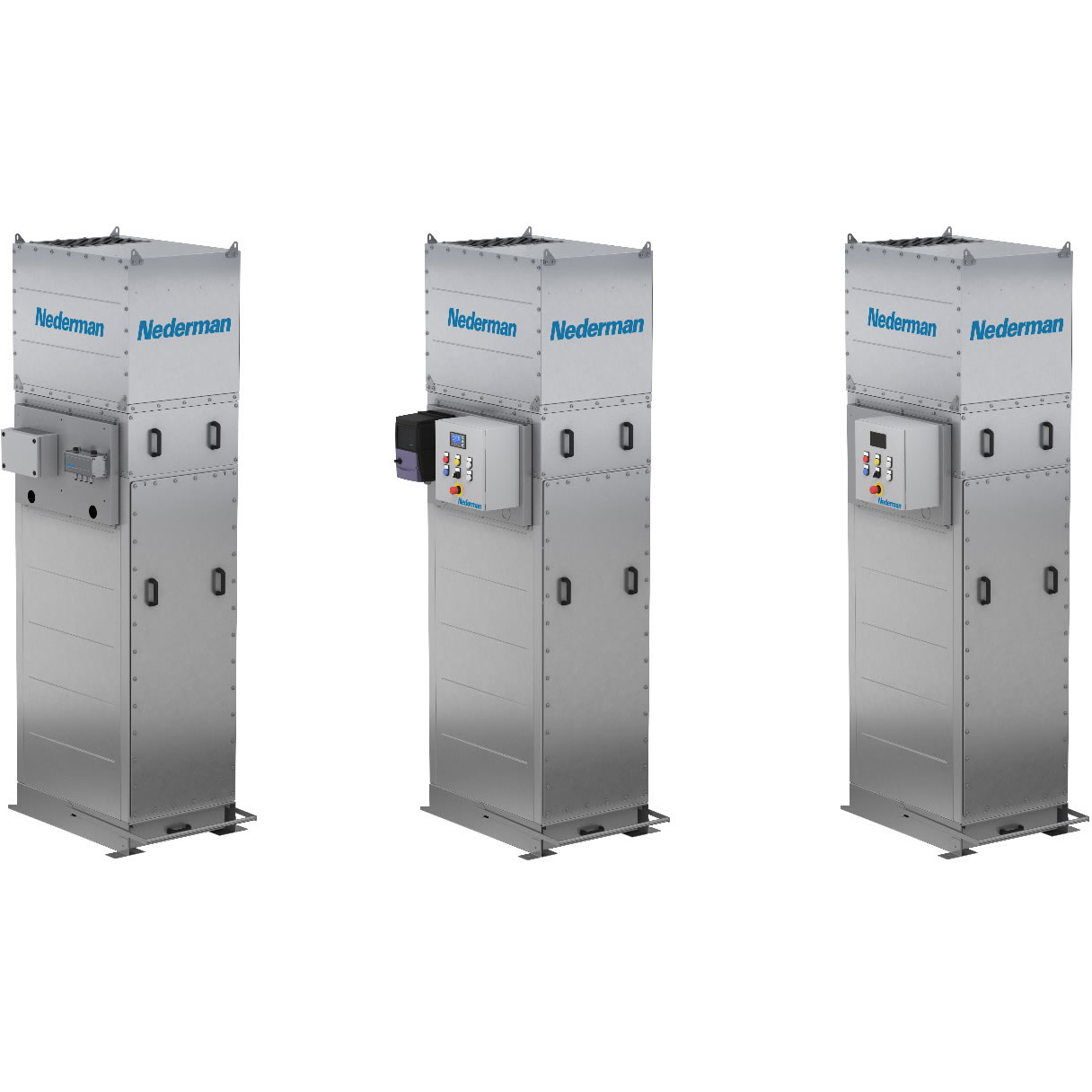

- Multiple control options to adapt to customer needs. From basic filter cleaning controller and fan starter to advanced Insight Control with Variable Speed Drive (VFD).
| Certifications | CE |
| Noise level (dB(A)) | < 75 (at 1m (3.28 ft.) from unit at 1,6 m (5.25 ft.) height |
| Compressed air consumption | 34,8 Nl/cleaning puls, 417 Nl/min |
| Installation | Indoor |
| Material | Galvanised sheet metal |
| Suitable for combustible dust | No |
| Filter cleaning method | Pulse jet |
| Working pressure (kPa) | Negtive pressure max 6 kPa (24 inch / 6000 Pa) |
| Dustbin volume (l) | 65 litres (17 gal.) |
| Capacity (max airflow m3/h) | 4.500 m3/h (2.650 cfm) |
| Operating Temperature | +5°C to 70 °C ( +40°F to 160°F ) |
| Power Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| No of phases | 3 |
| Filter type | Cartridge |
| Number of filter elements | 6 |
