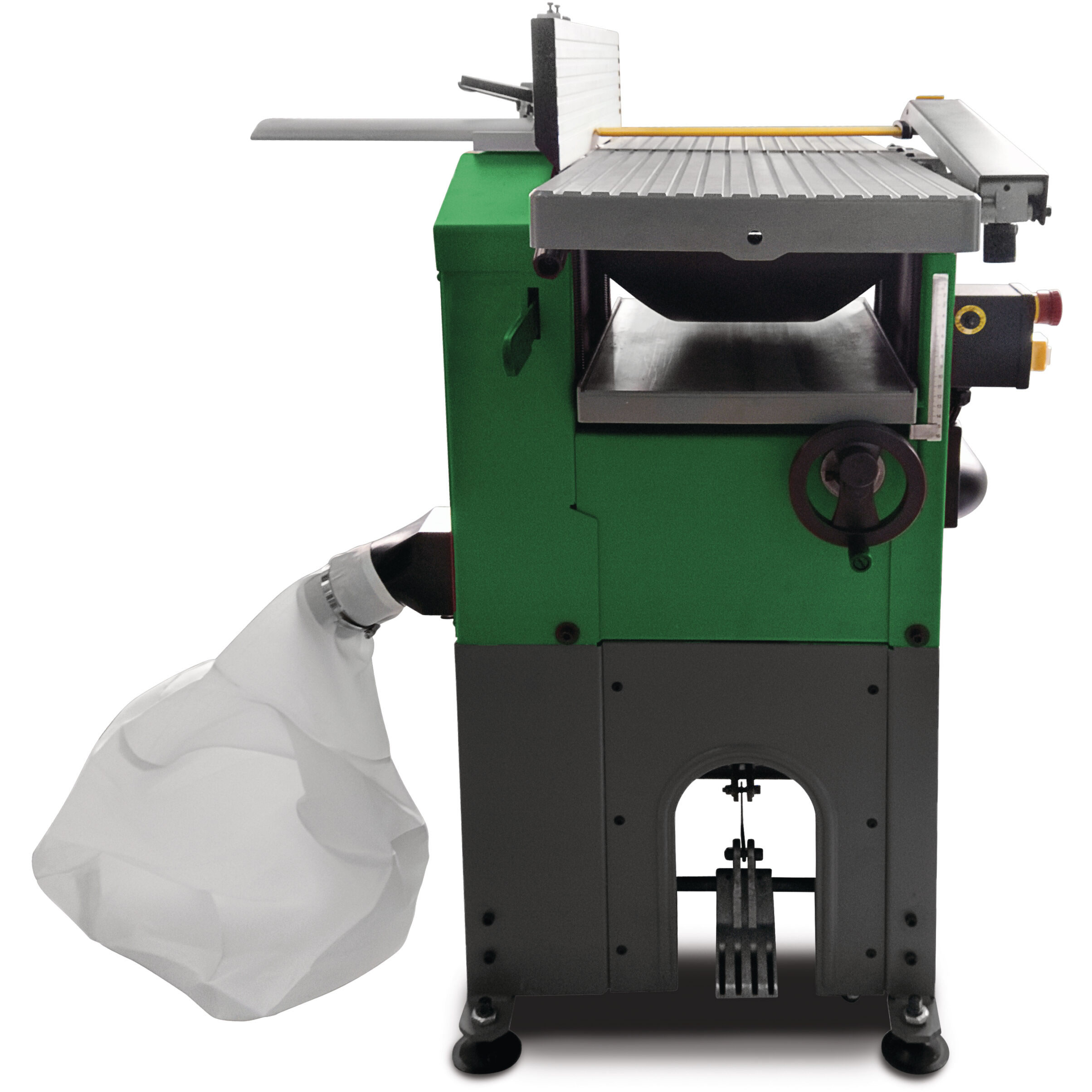

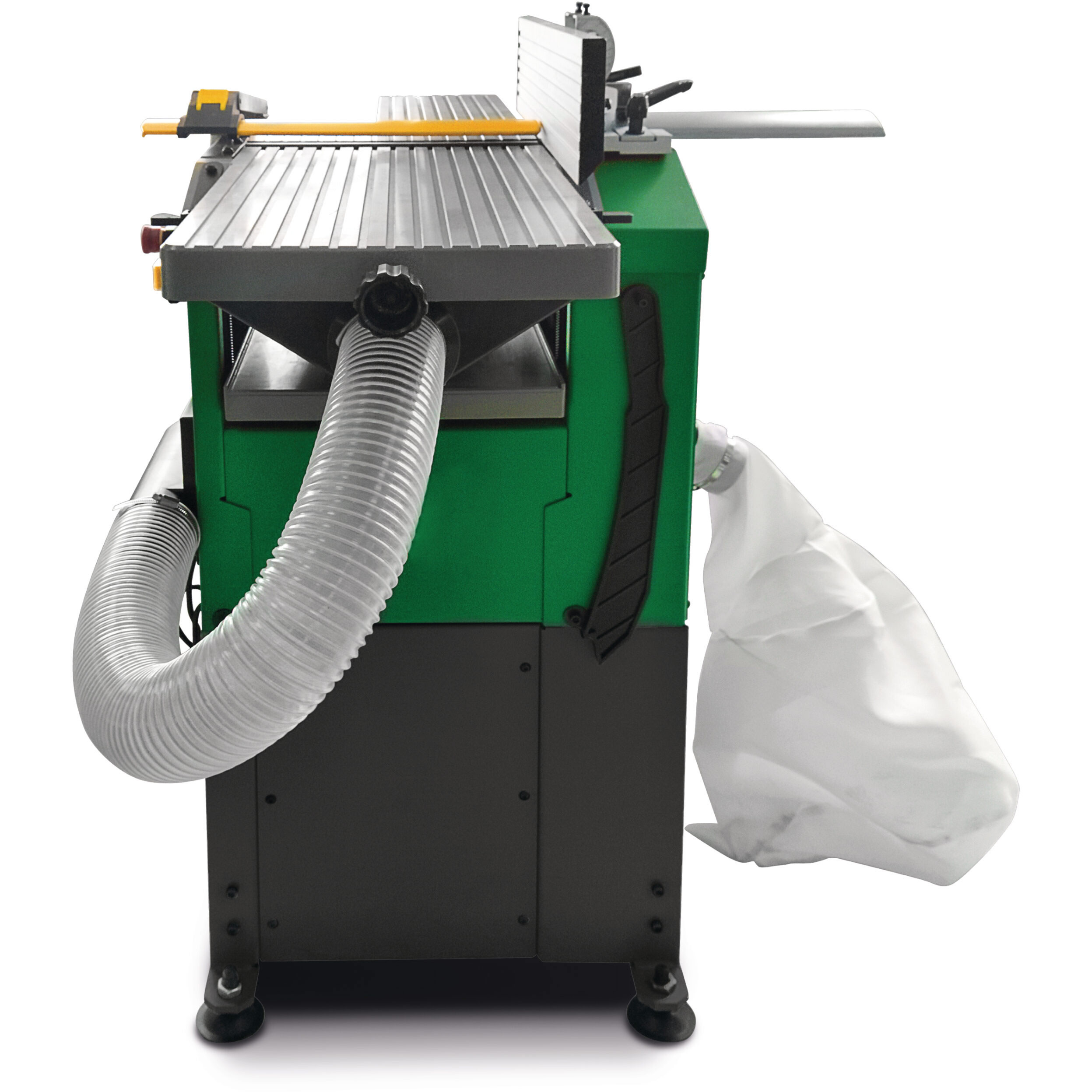

Holzstar ADH 2540 Planer/Thicknesser 230V

Product code: 38049532

In Stock Check Stock By Store
x
Inverness Depot1
£1194.00 (£995.00 +VAT)
254x160mm Planer/Thicknesser + Integral dust extraction system + floor standing base unit + 1800W motor 230v

    This product is not available online.
    Please contact us to buy.

    • For angular joining (90°) and precise planing of solid wood boards and moldings
    • Automatic workpiece feed
    • Rubberized extraction roller protects the wood surface when planing thick
    • Suction integrated in the substructure
    • With chassis as standard
    • Simple and precise adjustment of the chip removal
    • Dressing table made of milled cast aluminum
    • Space-saving compact design
    Length (product)approx. 1105mm
    Width/depth (product) approx. 750mm
    Height (product)approx. 1075mm
    Net weightapprox. 87kg
    Total length of table1050mm
    Infeed table length510mm
    Infeed table width260mm
    Working height920mm
    Max. cutting depth of joints3mm
    Planing stop length635mm
    Planing stop height127mm
    Planing stop pivoting range90 – 45°
    Suction hood connection diameter75mm
    Suction unit connection diameter75mm
    Machine body length450mm
    Machine body width/length420mm
    Thicknessing table length480mm
    Thicknessing table width254mm
    Working height min. thickness6mm
    Working height max. thickness160mm
    Working length min. thickness250mm
    Max. cutting depth thickness2mm
    Duty type drive motorS1
    Drive motor output1,2kW
    Absorbed power drive motor1,8kW
    Supply voltage230V
    Mains frequency50Hz
    Sound pressure level Lp81dB(A)
    Sound power level Lw93dB(A)
    Planing shaft typeStrip planer blade shaft
    Planing shaft diameter62mm
    Number of planing blades2St
    Planing shaft speed6700min¯¹
    Max. planing width254mm
    Feed speed8.5m/min
