ESAB Rogue EMP 210 PRO is an inverter-based multi-process welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.
With a weight of only 16.7 kg, 230 V single-phase input and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.
Entry-level welder with professional performance.
- Rogue EM and EMP single-phase welding power sources take everything welders loved about Caddy Mig to the next level with proven Rogue performance and a rugged industrial design. Power Factor Control (PFC) technology allows for a highly efficient and steady arc that is resistant to power fluctuations. Break away from convention with Rogue.
Built to withstand impact after impact.
- No other machine at this price point comes close to matching Rogue’s strength. Its robust and rigid fibreglass-moulded housing is built to withstand impact after impact, in the shop or in the field. Like every ESAB machine, Rogue comes with our industry-leading, 3-year warranty for unbeatable peace of mind. Goodbye cheaply constructed welders, hello strength and toughness when you go Rogue.
A portable workhorse.
- Rogue’s compact and lightweight design makes it easy to carry from job to job, with sturdy handles and a small footprint. Thanks to stable arc performance, performs in the workshop or on-site, on both mains and generator power, all without affecting weld quality. With its durable and weather-resistant housing and IP23S rating, Rogue is the definition of a portable workhorse.
Next-level multiprocess welding performance.

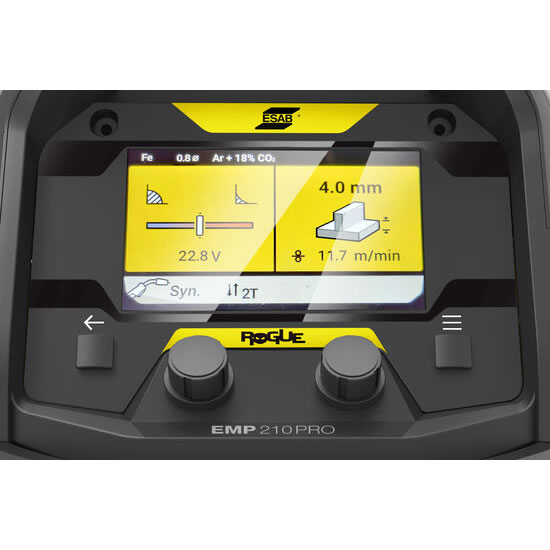

- A full-colour 5” screen and intuitive interface allow easy access to all features and parameters, even in bright sunlight. Take performance to the max with a true multiprocess welder with Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored, Lift TIG, Stick/MMA, and 6010 cellulosic capabilities.
Advanced features for total control.
- With Arc Dynamics you can fine tune arc characteristics based on the material you are welding. So if you need a stiff arc for carbon steel, or a soft arc for stainless, Rogue will not let you down. Advanced MIG features include adjustable pre- and post-flow, burn back control, wire jog and gas purge. In MMA mode, hot start and arc force control ensure smooth starts and consistent welds.
| Input Voltage | 230 VAC ±10 %, 1, 50/60 Hz |
| MIG (GMAW) Welding Output | 210 A24.5 V @ 30 % Duty Cycle |
| 136 A20.8 V @ 60 % Duty Cycle | |
| 105 A19.2 V @ 100 % Duty Cycle | |
| MMA (SMAW) Welding Output | 180 A27.2 V @ 30 % Duty Cycle |
| 116 A24.7 V @ 60 % Duty Cycle | |
| 90 A23.6 V @ 100 % Duty Cycle | |
| TIG (GTAW) Welding Output | 210 A18.0 V @ 30 % Duty Cycle |
| 136 A15.4 V @ 60 % Duty Cycle | |
| 105 A14.2 V @ 100 % Duty Cycle | |
| Current Range | 30-210 A |
| 12-26 V | |
| Wire Feeder Specifications | 2.0-16.5 m/min |
| Open Circuit Voltage | 78 VDC |
| Wire Diameter | |
| Aluminium | 0.6-1.0 mm |
| Stainless Steel | 0.6-1.0 mm |
| Cored Wire | 0.6-1.0 mm |
| Mild Steel | 0.6-1.0 mm |
| Max Spool Diameter | 100 & 200 mm |
| Power Factor at Maximum Current | 0.99 |
| Efficiency at Maximum Current | >82 % |
| Energy Save Mode | 50 W |
| Operating Temp | -10 - +40 °C |
| Enclosure Class | IP23S |
| Certification | CE |
| Dimensions, L x W x H | 590 x 220 x 385 mm |
| Weight | 16.7 kg |
